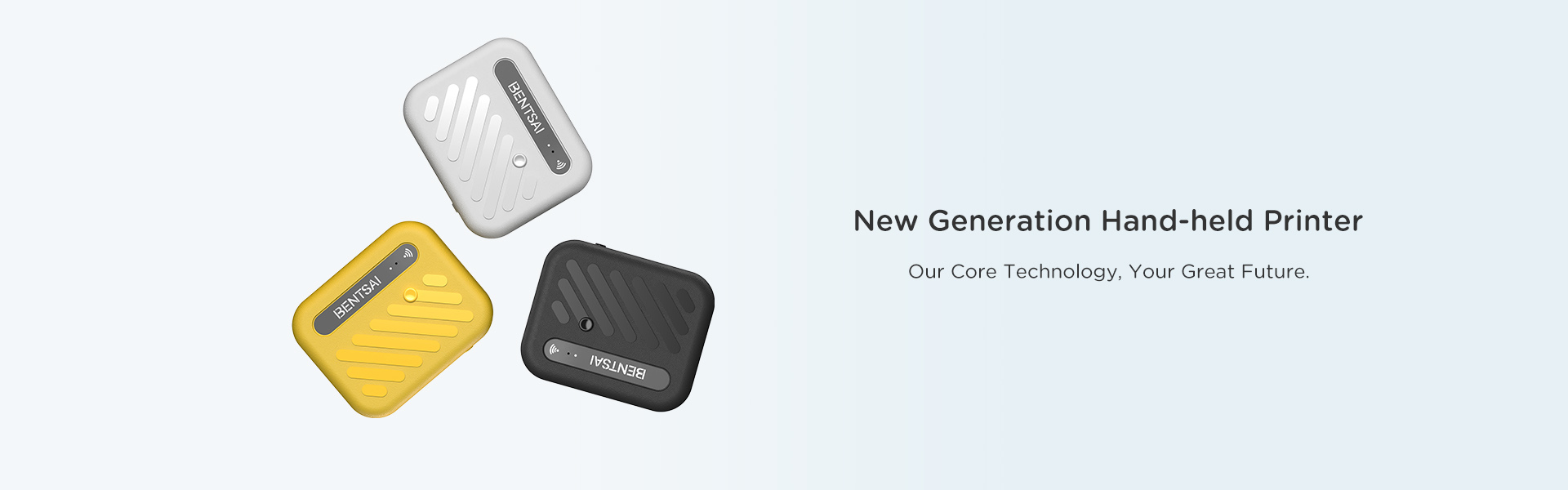

B10 SERIES

Mobile APP connection instant printing. DIY customized printing
  • B10 series mini printer, which is with small pocket size, can easily be taken along to anywhere at anytime.
  • It is DIY customized printing is able to print whatever you like.

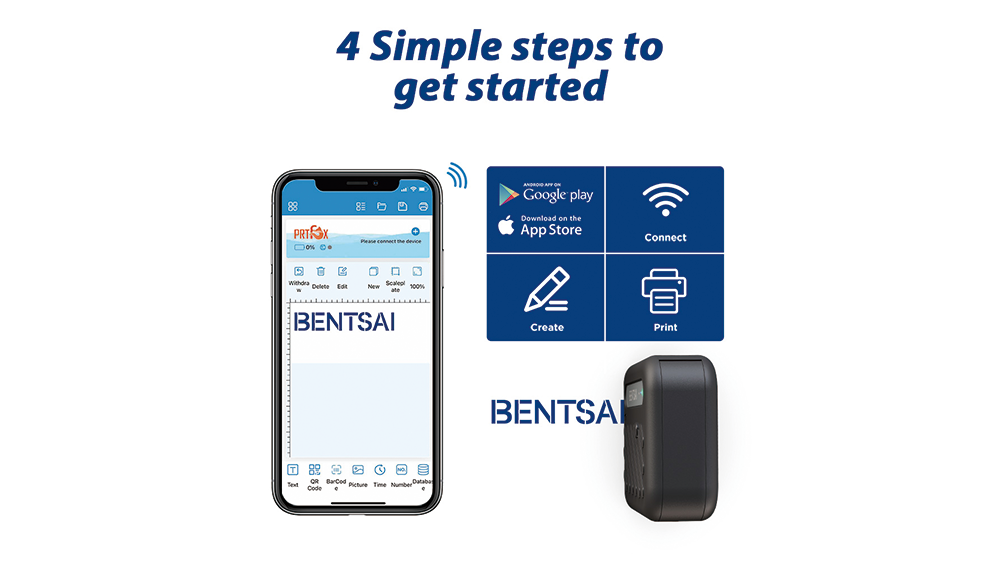

  • Users can connect it with mobile through WIFI.
  • Then you will experience its simple operation and multiple languages support at the same time.
  • Max printing speed of B10 is up to 500mm/s which makes your work faster, smoother, and more spontaneous.

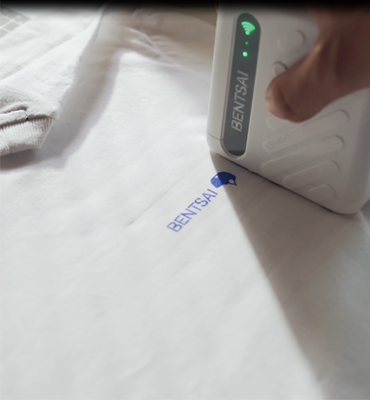

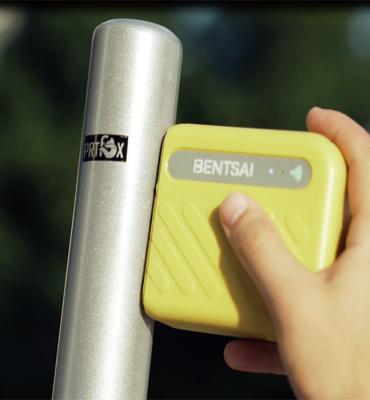

APPLICATION IMAGES

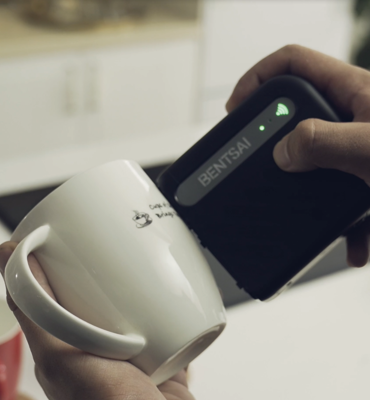

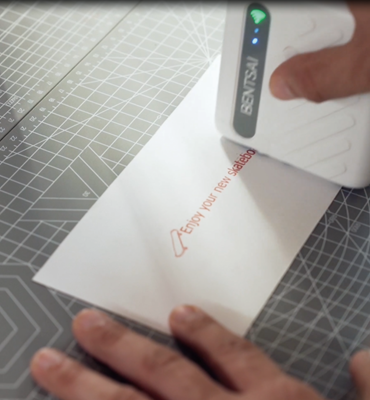

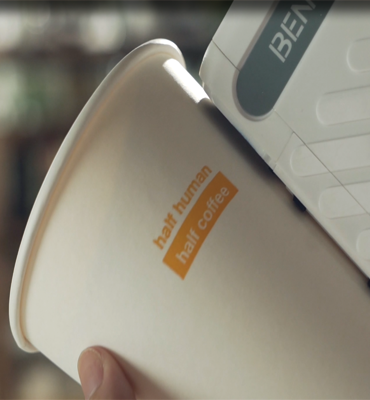

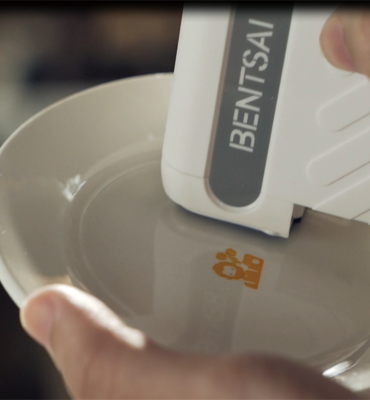

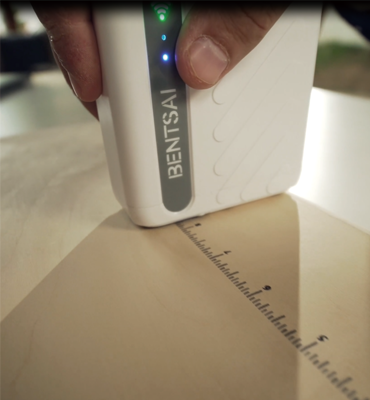

SAMPLE PRINT

SPECIFICATION

  • Product model B10/B15( Black/White/Yellow ) Applicable to weak solvent ink cartridge, using WiFi to connect mobile app, realizing data transmission and jet printing
  • Cartridge color Weak solvents: Black, white, red, yellow, blue, green, invisible

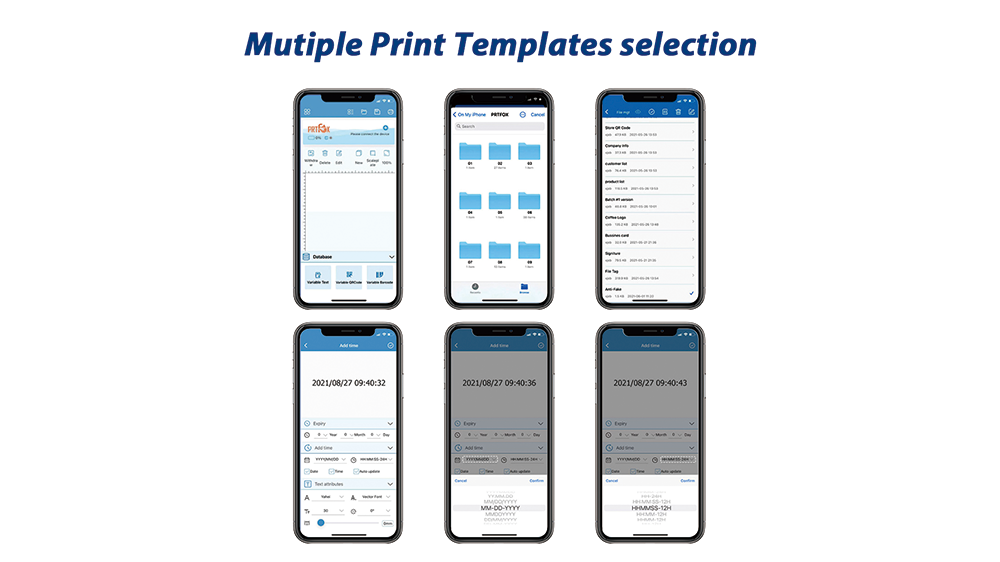

  • APP Android, IOS
  • Display status Green indicates ready status; Blue indicates the print status; Red indicates alarm status
  • Spray printing content Text, number, symbol, two-dimensional code, bar code, picture, time, number, database, etc.
  • Printing accuracy 300dpi/600dpi
  • Language Chinese, English, German, Arabic, Spanish, Russian, Japanese, Korean, Italian, Portuguese, French, Hindi, Thai, Vietnamese, Persian, Turkish, Traditional Chinese (detailed by region)
  • Font height 2.5mm-12.7mm adjustable
  • Spray printing material Printing paper, wood board, carton, MDF, cotton cloth (water absorbent material) Stone, pipe, metal, plastic, aluminum foil, cable, etc. (non-absorbent material) It can also print in a narrow space with a height lower than 1.3 cm and a width greater than 3.6 cm
  • Jet printing font Vector font, dot matrix font
  • Font height 2.5 mm-12. 7mm
  • Spray printing distance 2-5mm (distance between nozzle and object)
  • Jet printing size 12.7*406mm
  • Jet printing speed 30m/min (max)
  • Cartridge capacity 42ml
  • Battery capacity 500mAH
  • Use ambient temperature 5-35 ℃
  • Use storage environment humidity 10%-80%
  • Number of lines printed Lines 1-5
  • Continuous printing time 2.5 hour
  • Printing area 12.7 mm × 500mm
  • Net weight of single unit 195g
  • Overall dimensions of single unit 110*90*40mm

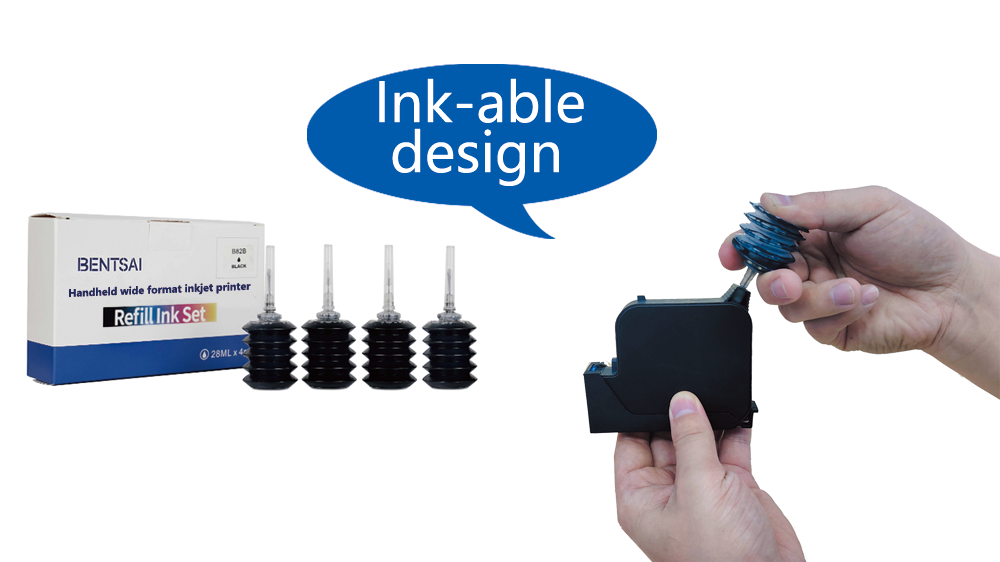

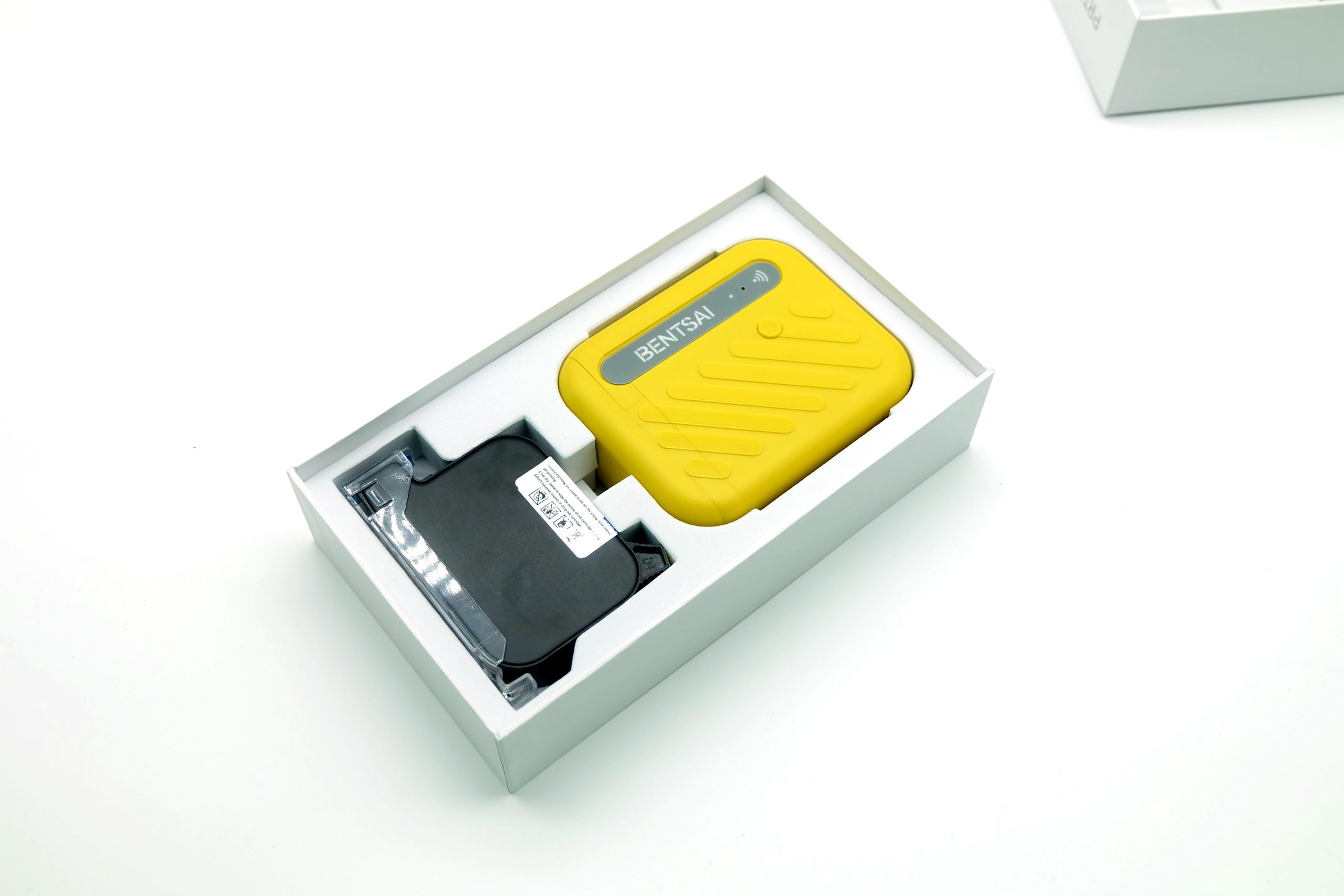

ACCESSORIES

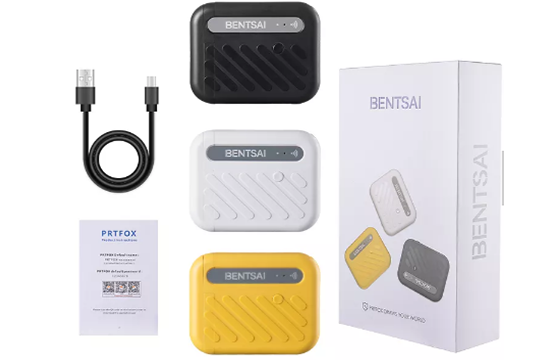

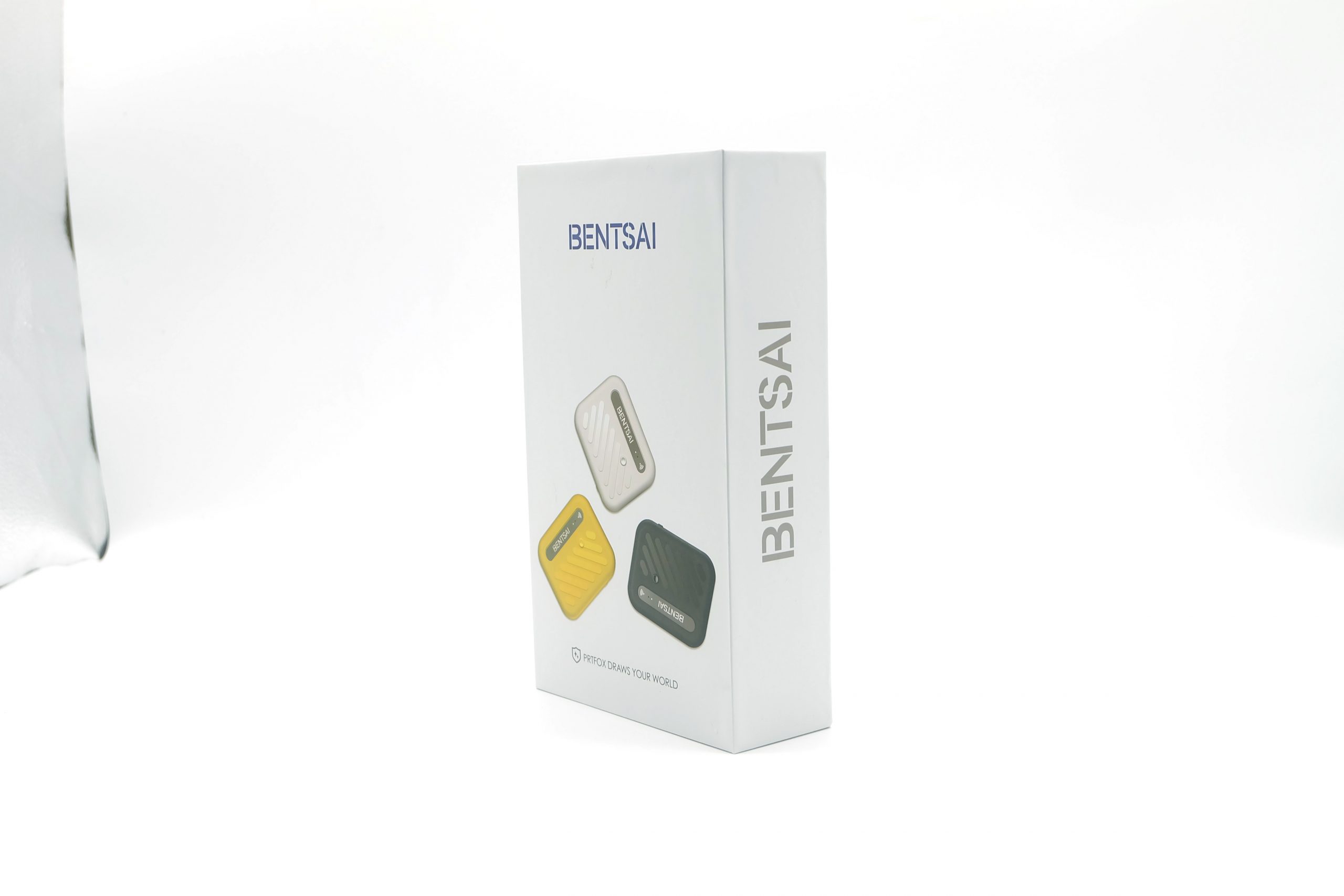

PACKAGING
